Wine pegs wine storage system connector bolt.

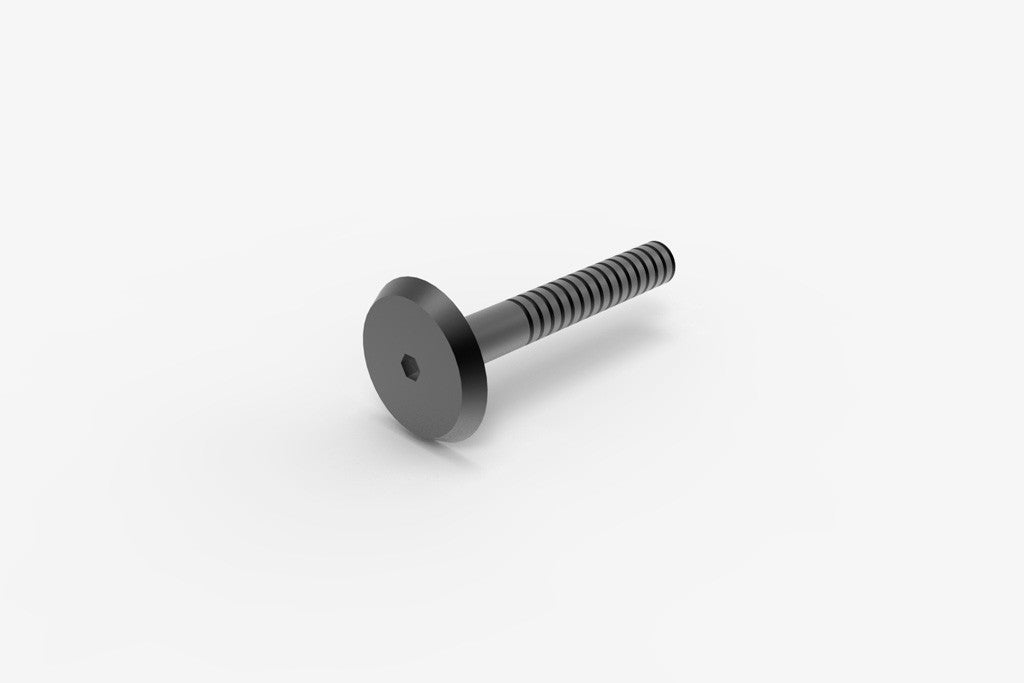

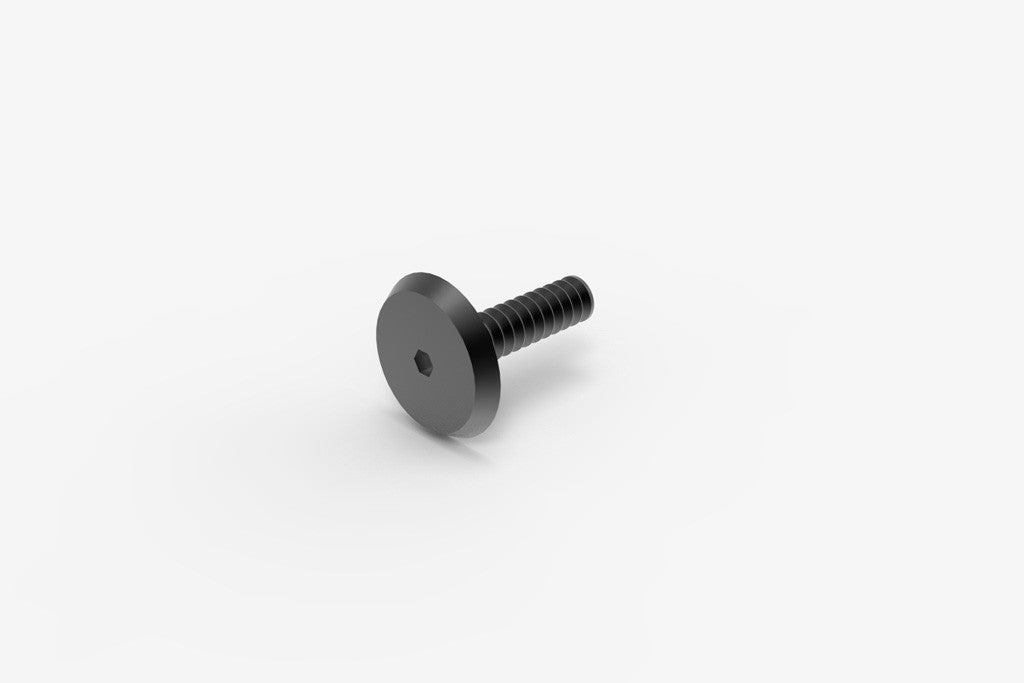

Connector Bolt

$ 1.50 USD

From $ 0.00 USD

You included the snippet swatch.liquid with the name of a product option — 'Finish' — that does not belong to your product.

Use {% include 'swatch' with 'name of your product option here' %}

Example: {% include 'swatch' with 'Finish' %}

This is case-sensitive! Do not put in 'finish' if your product option name is 'Finish'.

20mm

30mm

35mm

40mm

45mm

50mm

60mm

70mm

Quantity

Lead time icon

Questions icon Questions? Let us help.

Overview
Kit Includes
Installation

Set of 2 connector bolts

A connector bolt is Wine Pegs' premiere fastener choice and a necessary component for our standard recommended installation. Should your project require larger connector bolt in conjunction with a larger panel we offer a selection of options to suit your installation needs. You may assemble the rods by threading a connector bolt through the backside of your pre-drilled, cut and finished panel. Thread the rod into the connector bolt from the front side of your panel.

Size Chart

Panel Thickness	Recommended bolt size
1/8" (3mm)	20mm
1/4" (6mm)	20mm
1/2" (12mm)	30mm
3/4" (19mm)	35mm
1" (25mm)	40mm
1 1/4" (31mm)	50mm
1 1/2" (37mm)	50mm
2" (50mm)	60mm

View guide

Custom

For custom cellar design and build services please contact us via email at info@winepegs.com

View FAQ

x2 Connector Bolts

Connector Bolt Installation Guide
